RATING CERTIFICATE
(Valid only after approval and registration by the JCH commission)
Sail number : 6

YACHT DESCRIPTION

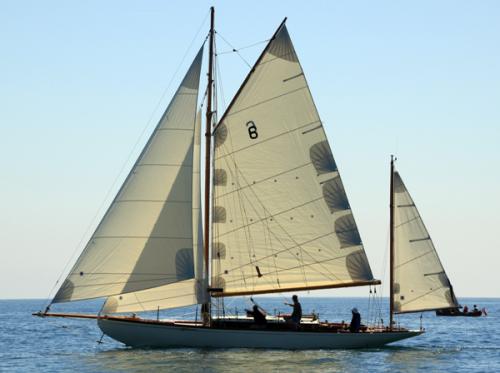

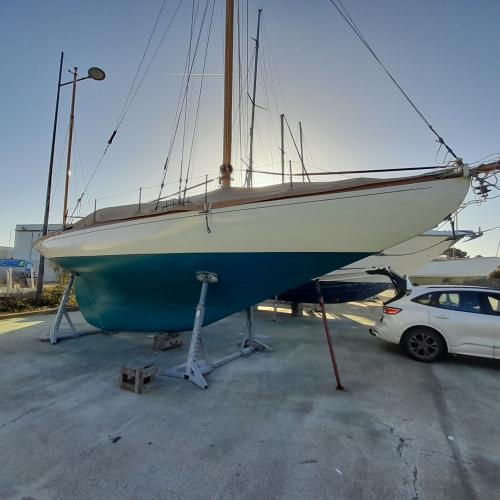

Name of Yacht: TRASNAGH Photo 1 - Photo 2... Request date : 2025-09-15 Launch year :1913 Designer : Alfred Mlyne Builder : Hilditch Class name : titre Usual place of sailing : Brest	Declared dimensions : Lenght Over All (L_H) = 12.04 m Length on the Water Line (L_WL) = 8.23 m Max width (B_H) = 2.77 m Draft (TE) = 1.61 m Displacement factor (FD) = 5.879
Correction factor calculation Type of rig : gaffer yawl = 0.84 Hull: classic 2 C2 = -0.03 Kref = 0.179 C2a = 0.033 Performance group : Performance class 3 = 0 Vintage bonus (build): 1913 = -0.037 Vintage bonus (estimated): 1912 = -0.038 Cumulative vintage bonus: -0.075 Hull material : traditional wood = -0.03 Mast material : wood/aluminium/steel = 0 Boom material : wood/aluminium/steel = 0 Mast or boom total penality (D.2.1.3.6) : 0 Year of mast change : 2010 = 0.017 Year of spar change : 2010 = 0.009 Sails material : type 2 = 0 Propeller type : orientable ou repliable = -0.01 Winches ? : with = 0 Correction factor (C)= 0.768	GAFFERS Foresail area: 33.72 m² Staysail HLU = 8.35 ; HLP = 3.53 Jib HLU = 10.71 ; HLP = 3.28 GAFFERS Main total area: 46.06 m² Gaffer Mainsail MAE = 9.93, MAH = 4.76, MAU = 5.83, MAD = 9.20, MAF = 5.98 Bermudian Mizzen or Jigger sail P = 5.16 ; E = 2.44 With Gaff topsail FE = 5.79, FU = 3.15, FF = 6.93 No downwindsail

RATING ( Rc ): 6.7749

Time corrected Factor ( Ftc ): 0.8407

The delivery of a JCH certificate does not have to be understood as the elligibility of the boat to classic regattas.
Elligibility to a specific regatta is governed by the elligibility rules the organizers has decided and have displayed in the Notice of Race.

IMPORTANT :
Handicap is calculated according to JCH calculation rules with your own measurements.
You are not allowed to use until it has been validated by a member of the JCH committee.
